Manage Composites¶
A Composite groups screens from one or more source computers into a single virtual resource, which then behaves like a regular workstation, visible in the Remote Desktops list and assignable to users, groups, and collections. Composites are commonly used to replace a physical KVM switch, for example to display a video feed and a monitoring feed side by side.
Access: inventory_2 Inventory > tv Remote Desktops.
Use the All / Computers / Composites toggle to filter the list to composites only (see Manage Workstations).
Creating a Composite¶
Go to inventory_2 Inventory > tv Remote Desktops.
Click New Composite.
Fill in the form fields.
Click Create.
The composite appears in the Remote Desktops list with the type Composite. Assigning it to users, groups, or collections works the same way as for a computer (see Assign Users to a Computer).

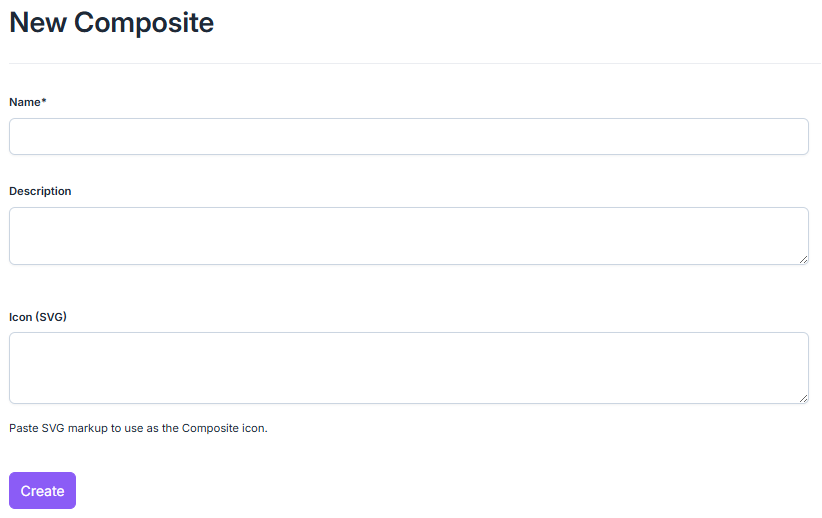

New Composite form.¶
Form Fields¶
Name (required): the composite’s label.
Description: optional.
Icon (SVG): optional, paste an SVG to use as the composite’s icon.
View and Edit a Composite¶

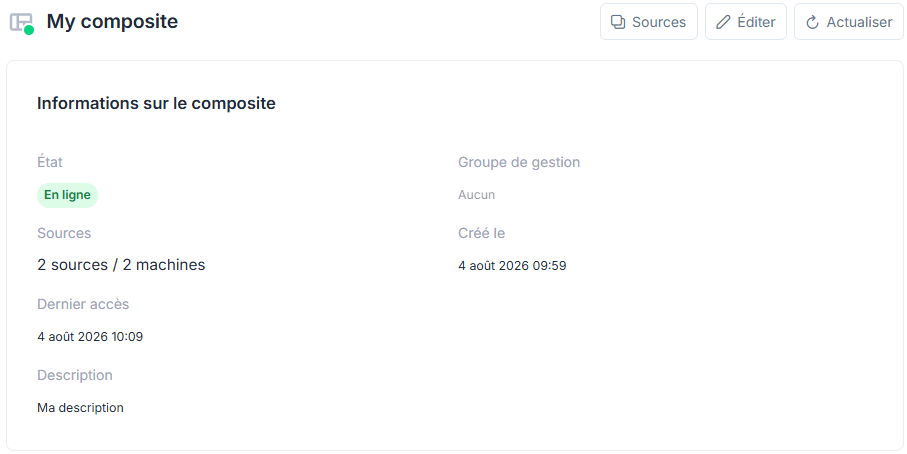

Click a composite’s name to open its detail page. The Overview page summarizes the composite: its state (see Composite Status below), the number of sources and machines (a machine used as more than one source is counted once), its managing group, its creation and last access dates, and its description.
From the detail page:
Close the composite to users with Maintenance (see Put a Resource, a Container Profile or a Collection in Maintenance).
Edit the name, description, and icon with Edit.
Update the information and state with Refresh.
Configure the projected screens on the Sources page (see Configuring Sources).
Manage access and settings on the other pages of the detail page (see Detail Page Menu).
Composite Status¶
Since a composite aggregates several source computers, its status reflects the combined state of all its sources:
Online: all source computers are online.
Busy: at least one source computer has an active session. The number shown is the number of people connected to the resource; hover over the status to see their names.
Partial: some, but not all, source computers are online.
Offline: all source computers are offline.
In the Remote Desktops list, the status bar filters resources, computers and composites together, and shows the number of resources in each status. It combines with the All / Computers / Composites toggle.
Status filters of the Remote Desktops list.¶
Configuring Sources¶
Open the Sources page of a composite’s detail page to add, remove, or reorder the screens it projects. Changes are saved automatically.

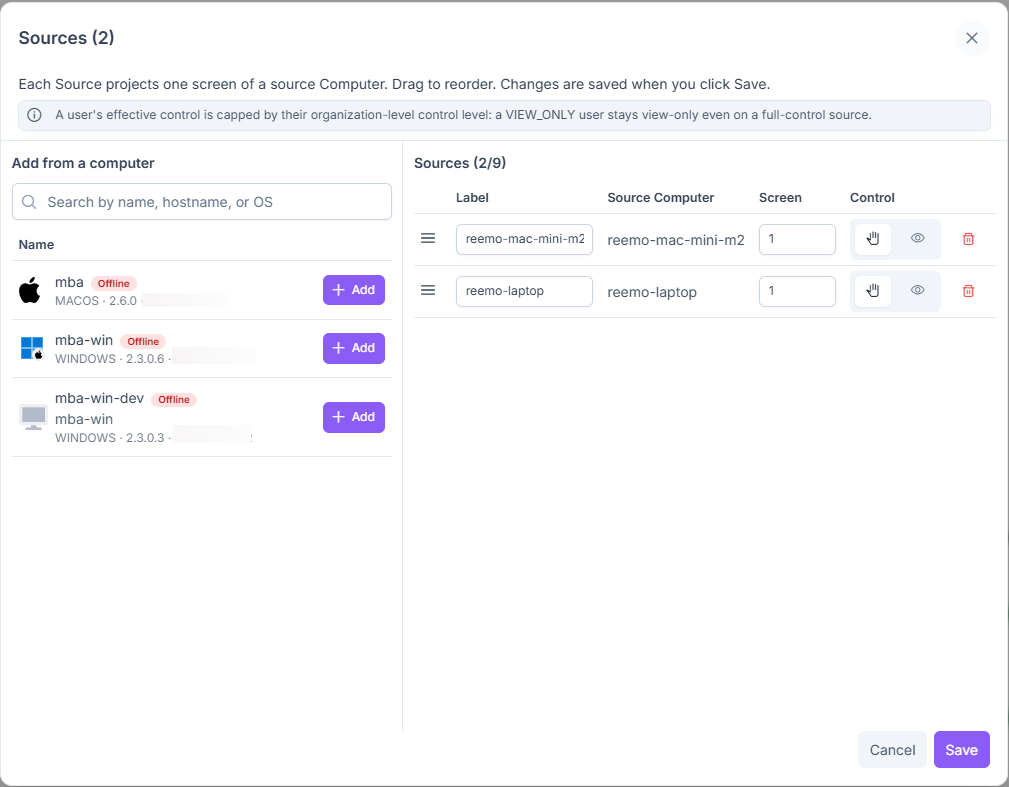

List of the sources of a composite.¶
To add sources:
Click Assign more sources.
In the Assign sources window, browse the groups or search for a computer by name, hostname or OS.
Click Assign next to the computer you want.
Each assignment adds a new source. The same computer can be assigned more than once, one source per screen: a badge (for example ×2) shows the number of sources that already use it. A composite can hold up to 9 sources.
Note
The sources of a composite are computers (remote desktops). Containers do not appear in the assignment window.
For each source, the list offers:
Label: editable name shown in place of the source, for example in the toolbar.
Screen: the screen number to project from the source computer.
Control: whether users connecting through this source get full control () or view-only access ().
Drag a source using its handle (☰) to reorder it. Click the trash icon to remove it.
Note
A user’s effective control on a source is capped by their organization-level control setting: a view-only user stays view-only even on a source configured for full control (see Starting a Session in View-Only Mode).
To let users replace a source during their session, turn on the Users can change the sources during their session setting. A user can then, from the web client toolbar, replace the computer shown on a screen with another computer they have access to themselves, view-only if that is their only right. Nothing is saved: the next time they launch, the composite shows its own sources. See Change the Sources of a Composite.
Enable Synchronized Lock¶
Synchronized lock locks and unlocks the Windows computers of a composite in one go: you unlock the main computer, and the other Windows computers unlock with it. The main computer is always the first one in the list of sources. To change it, drag another source to the first position.
Example of a composite with synchronized lock.¶
Note
If a user replaces the main source during their session (see Change the Sources of a Composite), the other computers stay unlocked.
Requirements
For the main computer:
A Windows computer
A Reemo Service version 2.9.0.3 or later (see Update)
For every other computer, so that it follows the main computer:
A Windows computer with a Reemo Service version 2.9.0.3 or later
The Reemo Credential Provider, called Reemo Autologon in the interface (see Configure Auto-Logon)
A credential assigned to the computer (see Assigning a Credential; on an on-premises instance, credential management must be enabled)
Full control () on the source (see Configuring Sources)
A source that is shown when the composite launches, that is, not placed in the Not shown area
On the main computer, the Reemo Credential Provider and the credential are optional: they are only used by the Log in to session button. The portal cannot check that the Reemo Credential Provider is installed: without it, the computer locks with the main computer, but you have to unlock it by hand (Fill login / Fill password stays available). A computer with neither a credential nor the Reemo Credential Provider leaves the synchronized lock. If a source is placed in Not shown, the web client displays a warning when you connect: “Synchronized lock: computer A, computer B not shown, so not following main computer.”
Activation
Open the Sources page of the composite’s detail page.
Turn on the Synchronized lock toggle.
Note
The toggle is disabled, with the reason shown under it, as long as the first computer in the list does not run Windows or no other computer in the list does.
Once synchronized lock is enabled, a badge appears next to the name of each computer in the Source Computer column:
Badge |
Color |
Shown when |
Effect |
|---|---|---|---|
Main |
Blue |
It is the first computer in the list (all its rows if it appears for several screens) |
Its lock state drives the other computers |
Follows |
Green |
The Windows computer meets the requirements |
Locks and unlocks with the main computer |
Won’t follow |
Gray |
The computer runs macOS or Linux |
Works as in a regular composite: keeps its Fill login / Fill password notification, and its credential stays usable |
Won’t follow |
Orange |
The computer runs Windows, but a requirement is missing (credential, full control, or being shown at launch) |
Is excluded from the synchronized lock: the state of the main computer has no effect on it |
Outdated |
Orange |
The Reemo Service is older than version 2.9.0.3 |
Is not attached to the synchronized lock and keeps its own Log in to session button |
For example, in a composite with a main Windows PC, a second Windows PC, and a Mac, unlocking the main PC also unlocks the second PC. The Mac does not change state and keeps its Fill login / Fill password notification.
Badges of the computers of a composite with synchronized lock.¶
Hover over a Won’t follow or Outdated badge to see the reason. For Outdated, the tooltip shows the required version and the installed version. If Outdated appears next to Main, the synchronized lock does not work until the Reemo Service of the main computer is updated.
How It Works¶
Synchronized lock can stay enabled without any effect:
In the portal: if the list no longer fits (for example a Mac dragged to the first position), a warning says that synchronized lock is inactive, followed by the reason (for example “The main computer, the first of the list, must run Windows.”). The toggle remains usable to turn the mode off.
When the session launches: if no computer can follow the main computer, the synchronized lock does not start and the session behaves like a regular composite.
When synchronized lock is active:
When the main computer is unlocked, every other computer that is still locked is unlocked with its credential, through the Reemo Credential Provider, then kept from locking due to inactivity. When it is locked, the other computers lock too.
At launch, the other computers align with the state of the main computer: locked if it is locked, unlocked otherwise.
Only changes on the main computer count: another computer you lock by hand stays locked until the next time the main computer is unlocked.
At the end of the session (sign-out, closed tab, disconnection), each Windows computer of the composite locks as soon as no other user is signed in on it.
Unlocking the Main Computer¶
With the Reemo Credential Provider and a credential, the Log in to session button unlocks the main computer. It is in the notification displayed at launch, or under Settings > General > Credentials (see Session). With synchronized lock, this button also signs in the other computers of the composite.
Without the Reemo Credential Provider, you can unlock the main computer by hand (typed password, or Fill password): the other computers still follow, because they react to the main computer locking, not to the button.
The button of the main computer covers the other computers. To unlock only one of them, use Sign in with Reemo on its lock screen, or lock then unlock the main computer.
When you connect to the composite, a window offers to sign in with the assigned credential: click Log in to session. With Later, sign in afterwards from the toolbar. With synchronized lock, the credential token is renewed throughout the session: Log in to session and Fill login / Fill password therefore stay available beyond the 5 minutes mentioned for a single computer (see Configure Auto-Logon).

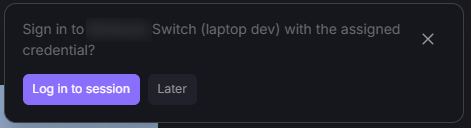

Window offering to sign in to the session.¶
Launching a Composite Session¶
When you connect to a composite with more than one source and your local machine has multiple screens, a dialog appears before the session starts. Use it to choose which source appears on which of your screens.
Composite launch dialog in Auto mode.¶
Each of your screens is shown as a frame, and each source as a numbered tile. The frame marked this window is the screen where the Reemo window is open.
Auto: each screen shows one source, then the extra sources share the last screens in a grid, 4 at most on each. The layout adjusts to the screens available.
Manual: place the sources yourself. Drag a source onto the screen of your choice. Up to 4 sources can share a screen in a grid. Source 1 stays in this window.
To hide a source, drop it in the Not shown area. Click Quit Composite to cancel, or Launch composite to start the session with this layout.
Manual mode: sources 1 and 3 share screen 1, and screen 3 is not used.¶
Note
The layout is chosen when the composite is launched. You cannot rearrange the screens in the web client once the composite is open.
